PVC Pipes and Fittings

UPVC Conduit Pipes & Fittings

UPVC Rigid Pipes

Features of UPVC - Pipes

  • Light Weight
  • Inside bore smooth
  • Co-efficient of flow high
  • Resistant to Corrosion, acids & alkalies
  • No formation of scaling or any incrustation
  • Installation easy & fast
  • Costwise cheaper
  • Life : Min 50 years

Range of Pipes

  • UPVC Pressure Pipes for portable water distribution
  • UPVC Pressure Pipes for irrigation
  • UPVC Pipes for drainage and sewage systems
  • UPVC BLUE casing and screens
  • UPVC Dewatering pipe
  • UPVC Conduit and duct pipes for electrical systems
  • UPVC Ducting for telecommunications systems

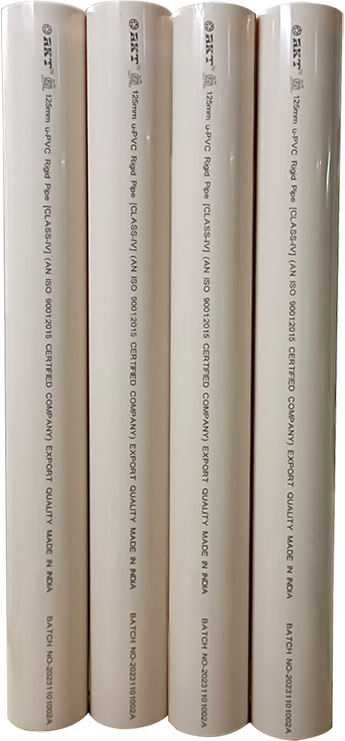

UPVC Rigid Pipes

Dimensions of unplasticised PVC pipes as per IS : 4985 : 2000

Swipe right to view more.

Nominal Dia Mean OD OD at any point Working Pressure, Mpa
      Class 1
0.25		 Class 2
0.4		 Class 3
0.6		 Class 4
0.8		 Class 5
1.0		 Class 6
1.25
  Min Max Min Max Avg Min Max Avg Min Max Avg Min Max Avg Min Max Avg Min Max Avg Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) (20) (21) (22) (23)
20 20.0 20.3 19.5 20.5 - - - - - - - - - - - - 1.5 1.1 1.5 1.8 1.4 1.8
25 25.0 25.3 24.5 25.5 - - - - - - - - - 1.6 1.2 1.6 1.8 1.4 1.8 2.1 1.7 2.1
32 32.0 32.3 31.5 32.5 - - - - - - - - - 1.9 1.5 1.9 2.2 1.8 2.2 2.7 2.2 2.7
40 40.0 40.3 39.5 40.5 - - - - - - 1.8 1.4 1.8 2.2 1.8 2.2 2.7 2.2 2.7 3.3 2.8 3.3
50 50.0 50.3 49.4 50.6 - - - - - - 2.1 1.7 2.1 2.8 2.3 2.8 3.3 2.8 3.3 4.0 3.4 4.0
63 63.0 63.3 62.2 63.8 - - - 1.9 1.5 1.9 2.7 2.2 2.7 3.3 2.8 3.3 4.1 3.5 4.1 5.0 4.3 5.0
75 75.0 75.3 74.1 75.9 - - - 2.2 1.8 2.2 3.1 2.6 3.1 4.0 3.4 4.0 4.9 4.2 4.9 5.9 5.1 5.9
90 90.0 90.3 88.9 91.1 1.7 1.3 1.7 2.6 2.1 2.6 3.7 3.1 3.7 4.6 4.0 4.6 5.7 5.0 5.7 7.0 6.1 7.1
110 110.0 110.4 108.6 111.4 2.0 1.6 2.0 3.0 2.5 3.0 4.3 3.7 4.3 5.6 4.9 5.6 7.0 6.1 7.1 8.5 7.5 8.7
125 125.0 125.4 123.5 126.5 2.2 1.8 2.2 3.4 2.9 3.4 5.0 4.3 5.0 6.4 5.6 6.4 7.8 6.9 8.0 9.6 8.5 9.8
140 140.0 140.5 138.3 141.7 2.4 2.0 2.4 3.8 3.2 3.8 5.5 4.8 5.5 7.2 6.3 7.3 8.7 7.7 8.9 10.7 9.5 11.0
160 160.0 160.5 158.0 162.0 2.8 2.3 2.8 4.3 3.7 4.3 6.3 5.4 6.2 8.2 7.2 8.3 9.9 8.8 10.2 12.2 10.9 12.6
180 180.0 180.6 177.8 182.2 3.1 2.6 3.1 4.9 4.2 4.9 7.0 6.1 7.1 9.0 8.0 9.2 11.1 9.9 11.4 13.7 12.2 14.1
200 200.0 200.6 197.6 202.4 3.4 2.9 3.4 5.3 4.6 5.3 7.7 6.8 7.9 10.0 8.9 10.3 12.3 11.0 12.7 15.2 13.6 15.7
225 225.0 225.7 222.3 227.7 3.9 3.3 3.9 6.0 5.2 6.0 8.6 7.6 8.8 11.2 10.0 11.5 13.9 12.4 14.3 17.1 15.3 17.6
250 250.0 250.8 247.0 253.0 4.2 3.6 4.2 6.5 5.7 6.5 9.6 8.5 9.8 12.4 11.2 12.9 15.4 13.8 15.9 18.9 17.0 19.6
280 280.0 280.9 276.6 283.4 4.8 4.1 4.8 7.3 6.4 7.4 10.7 9.5 11.0 14.0 12.5 14.4 17.2 15.4 17.8 21.1 19.0 21.9
315 315.0 316.0 311.2 318.8 5.3 4.6 5.3 8.2 7.2 8.3 12.0 10.7 12.4 15.6 14.0 16.1 19.3 17.3 19.9 23.8 21.4 24.7

Notes:

  • The table is based on metric series of pipe dimensions given in ISO 161/1 on respect of pipe dimensions and ISO DIS 4422.
  • The wall thickness of pipes is based on a safe working stress of 8.6 MPa at 27 C and the working pressure gets reduced at sustained higher temperatures. Occasional rise in temperatures as in summer season with concurrent corresponding reduction in temperature during nights has no deleterious effect on the working pressure of PVC pipes considering the total life of pipes.
    For class 1, 2 and 3 of all size, this requirement need not be satisfied as the ratio of minimum wall thickness to nominal outside diameter does not exceed 0.035 in these cases.
  • Mpa X10 = KGF/CM2

PVC Electrical Conduit Pipes

Dimensions of electrical PVC Conduit pipes as per IS : 9537 (Part -3) : 1983

Swipe right to view more.

Nominal Size
mm		 Outside Diameter
mm		 Tolerance On O.D
mm		 Minimum Inside Diameter
mm
Light Medium Heavy
(1) (2) (3) (4) (5) (6)
16 16 -0.3 13.7 13.0 12.2
20 20 -0.3 17.4 16.9 15.8
25 25 -0.4 22.1 21.4 20.6
32 32 -0.4 28.6 27.8 26.6
40 40 -0.4 35.8 35.4 34.4
50 50 -0.5 45.1 44.3 43.2
63 63 -0.6 57.0 - -

UPVC Plumbing Pipes

PVC Plumbing Pipes are non-toxic which makes them a safe material for potable water. uPVC plumbing system utilises NSF approved one-step solvent cement, specifically formulated for the use. This hygienic and cost effective system is not only technically superior to conventional GI systems but offers many additional advantages over them. Easy to install and functionally most suitable for plumbing application like terrace looping, down-take and up-take lines, concealed pipe work, this system ultimately costs almost half of the conventional systems and yet has a much longer life span.

Standards & Specifications

  • SCH 40: As per ASTM D1785, D2466
  • SCH 80: As per ASTM D1785, D2467

Features

  • Strong and light weight
  • Durable
  • UV stabilised
  • Simple and leak-proof joints
  • Maximum flow rate
  • Chemical resistance

Fields of Application

  • Down take lines
  • Swimming pools
  • Pipes for hand pumps
  • Salt water lines
  • Sugar and paper industries
  • Industrial process lines
  • Aggressive / corrosive fluid transportation
  • Coal washing and ash handling

UPVC SWR Pipes

PVC SWR pipes has successfully replaced conventional CI and AC drainage systems. The S.W.R. drainage system is designed for quick and efficient removal of waste without leakage, breakage or blockage. It is highly resilient, tough and durable with high tensile and impact strength. Moreover it is free from scale formation, rusting, weathering and chemical action. It is virtually immune to attack by bacteria, fungi, micro-organisms and insects.

Product Specifications & Range

  • Pipes – 63, 75, 90, 110 & 160 mm
  • Fittings – 40 to160 mm /company standard

Features and Benefits

  • High quality standards and wide range
  • Stronger and longer lasting
  • Excellent chemical and corrosion resistance.
  • UV resistance – free from the adverse effect of sunlight and weather
  • Quick and convenient installation
  • Adequate and easy access, for cleaning and clearing obstructions
  • Least maintenance
  • Cost effective drainage system.

Fields of Application

  • Drain and sewer systems in residences
  • Commercial Complexes
  • Resorts
  • Hospitals
  • Institutes
  • Industries etc.
